CPJ 3015A digital projector
Introduction:
CPJ series digital projector is high accurate instrument for profile dimension and shape of sample, pressing part, screw, gear and cam, ect. It is reversing mirror type. Under the illumination of light, the profile measurement error is ＜0.08%. It is widely applied in mechanics, metering, electronic institutes and calibration departments. It is made according to GB/T2951..1-1997《general test method for cable insulation and sheath material》(IEC60811). It is a high precision optic measuring instrument, suitable for wire, cable, instrument, plastic rubber industries.

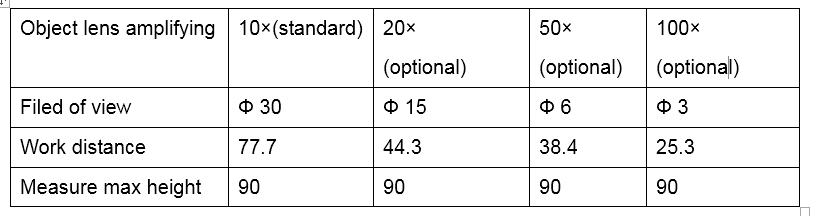

Parameters of Model: CPJ3015A
metal table dimension:（354×228）mm
Glass table dimension: 210*160
X axle range: 150 mm
Y axle range: 100 mm
Z axle range: 100 mm (focusing)
Accuracy: (2.5+L/100) μm
X, Y axle digital resolution: 0.5μm
dimension（mm）: 780×780×1100
Weight: 160 kg
Projecting screen: Φ 312 mm, with scaling line when use range ＞Φ 300 mm
Projecting rotation: 0～360 °
Rotation angle display resolution:1’ or 0.01°
Instrument power: 110/220v AC 50/60Hz power: 400w
